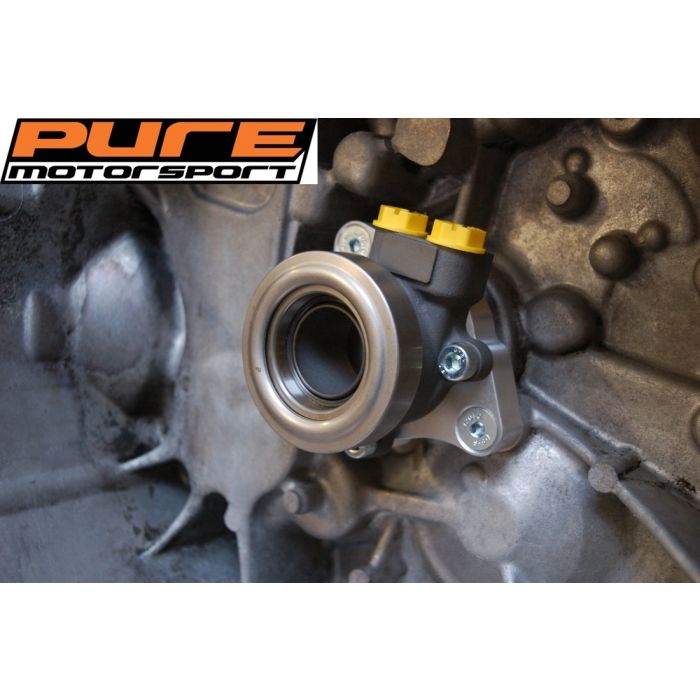

Megane 2RS AP Racing Concentric Slave Cylinder Conversion

A simple bolt on kit to convert from standard CSC to an AP Racing concentric slave cylinder for all Megane 2 RS NDO gearboxes.

Kit includes:

1 x mounting bracket and bolts

1 x AP Racing CSC and mounting bolts

With options of: universal feed and bleed hose kit.  Please note this kit doesn't include all fittings to go back to the master cylinder or clutch damper fitting - it is a universal kit that plumbs into the CSC only - you will need to plumb into the other end using suitable fittings.

The AP Slave has a 50mm radiused contact face on the bearing.

Suitable for clutch springs that are 60mm from engine/gearbox mounting face.  This kit has a CSC height of 64.3mm - CSC height is measured from the CSC mounting face within the bellhousing to the contact face of the thrust bearing with the CSC fully retracted,

It is essential that you measure the height of your clutch fingers when new and allow 5mm clearance to bearing to allow for clutch wear - see drawing here and supply us with the information if you are unsure if this kit will work with your clutch.

To help you calculate the clutch CSC height you require, dimension 'E' on a NDO gearbox is 129mm.
