Megane 2RS/3RS Engine Breather Plate, Oil Catch Tank

This is a breather plate kit comprising of a CNC machined baffled aluminium breather plate to replace the original item on Megane 2RS and Megane 3 RS. The plate is CNC engraved and has an AN-10 male fitting to be used with an after-market oil breather catch tank.

This plate doesn't have any provision for fixing the original turbo heat shield or turbo outlet bracket.  It's suitable for highly modified cars where the original breather outlet is not sufficient or an oil catch tank is required.  It comes supplied with AN-10 fitting with O ring (which looks good) and a dowty washer which doens't look so nice but does allow the outlet fitting to be locked into place.  The original tank breather pipe can be connected to the supplied quick connect fitting, or blanked off with the supplied blanking plug.

To be sealed using instant gasket such as Loctite 5980.

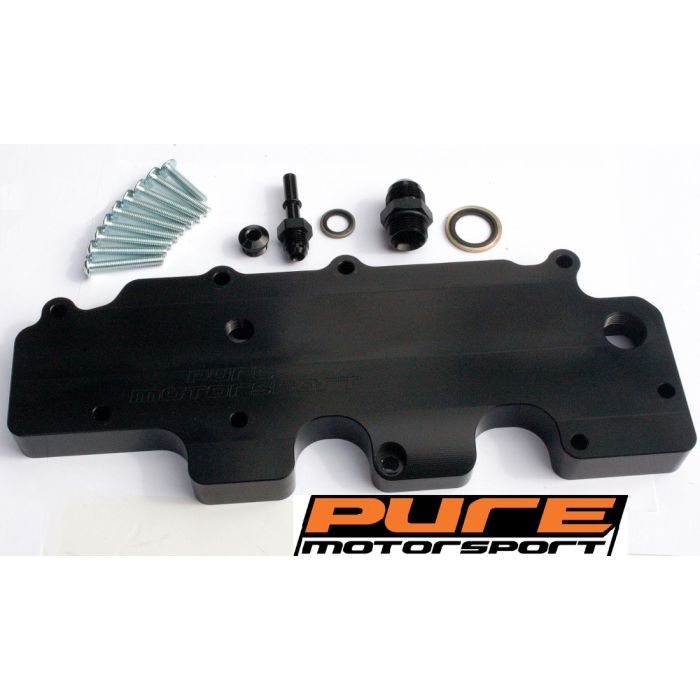

Included parts:

CNC machined 25mm deep breather plate, engraved with Pure motorsport logo, finished in black hard anodising.

Mounting bolts.

AN-10 male-male adaptor, O ring and Dowty washer

Quick connect fitting for fuel vapour connection with dowty washer

Blanking plug for quick connect fitting hole if not required.

The oil catch tank is a Torques, bulkhead mounted, universal 1L or 2L can with integral breather cap.  Has a sight gauge and bottom mounted drain plug.  The 2L capacity means it is MSA approved for motorsport use.

Options of 90 degree fitting for breather plate end and straight fitting for catch tank end with socketless push on hose suitable for oils.
