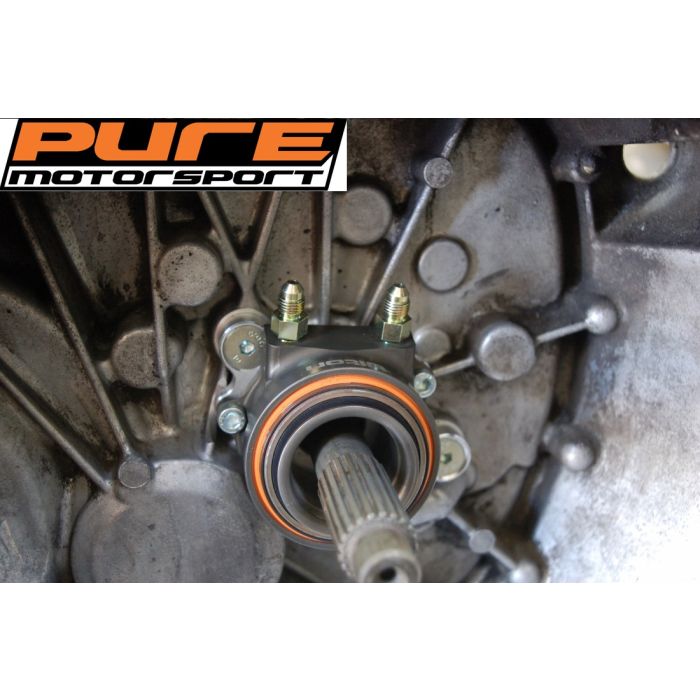

Clio 3RS Tilton Concentric Slave Cylinder Conversion

A simple bolt on kit to convert from standard CSC to a Tilton race type concentric slave cylinder for all Clio 3RS TL4 gearboxes.

Kit includes:

1 x mounting bracket and bolts

1 x Tilton CSC and mounting bolts

With options of: universal feed and bleed hose kit.  Please note this kit doesn't include all fittings to go back to the master cylinder or clutch damper fitting - it is a universal kit that plumbs into the CSC only - you will need to plumb into the other end using suitable fittings.

The dimension we show for CSC height is measured from the CSC mounting face within the bellhousing to the contact face of the thrust bearing with the CSC fully retracted,

It is essential that you measure the height of your clutch fingers when new and allow 5mm clearance to bearing to allow for clutch wear - see drawing here and supply us with the information if you are unsure which one you require.

To help you calculate the clutch CSC height you require, dimension 'E' on a TL4 gearbox is 112.6mm.
