Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit
SKU
Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit
£11,220.00
£9,350.00
In stock
SKU
Clio 2 RS 5 Speed Sequential Gearbox and Fitting Kit
Please select options below.
Beckert 5 speed sequential gearbox with fitting kit. No fabrication, cutting or drilling is required to fit - this kit is a complete bolt in solution!!
Gearbox: Beckert Technology 5 Speed FWD sequential gearbox, straight cut with dog engagement, dual ramp angle plate LSD. 1"x23 teeth input shaft clutch spline.
Rated for 350Nm (260lb/ft), and supplied with a one year warranty against shaft and gear teeth issues.(Higher torque ratings are possible with the longer final drive options).
RATIOS | ||||||
ULTRA SHORT | SHORT SET | LONG SET | ||||
1st | 2.909 | 2.909 | 2.909 | |||
2nd | 2.455 | 2.182 | 2.182 | |||
3rd | 2.083 | 1.733 | 1.667 | |||
4th | 1.769 | 1.438 | 1.313 | |||
5th | 1.533 | 1.235 | 1.1 | |||
5th option | 1.05 | |||||
FD | 3 | 3.5 | 3.82 | 4.08 | 4.67 | 5 |

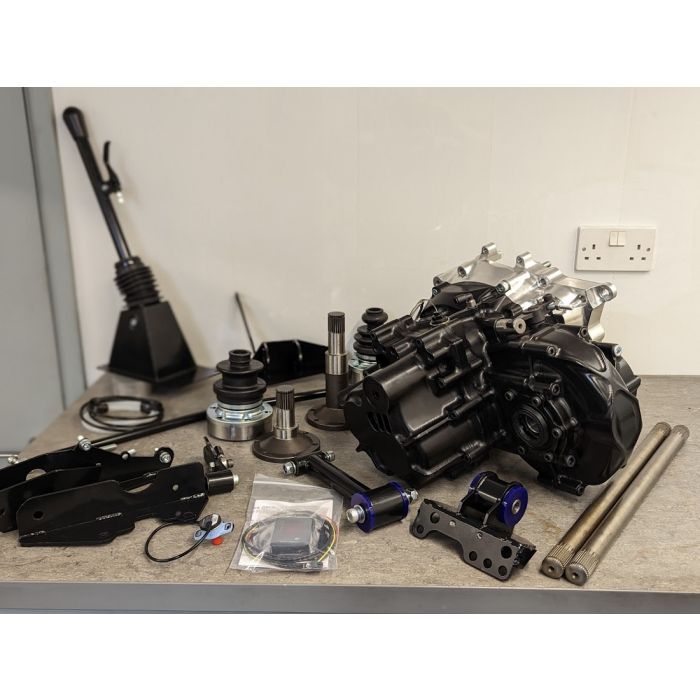

Kit includes:
- Upper and lower gearbox mounts
- Shifter
- Output drive flanges
- High strength inner CV joints
- Driveshafts
- Outer CV joints (SNR with larger internal spline size)
- Hydraulic release bearing slave cylinder (will require a hydraulic clutch conversion)
Optional extras:
- Gear display
- Single or twin channel gear position sensor
- Flywheel to accept 7.25" clutch
- Tilton twin plate 7.25" clutch
- Concentric slave cylinder height is to match the above clutch set-up - different heights available when using other clutches (you can't use a standard Renault splined clutch)
Ratios will suit all vehicle uses, please contact us for a speed chart for your specific vehicle and required top speed.
