Clio 2 Adjustable Wishbone Package
Please configure your Clio 2 Adjustable Wishbone Package
The rally car kit has a different angle of outer joint and also allows more articulation in the joints for suspension with a higher ride height and larger amounts of droop. The rally kit will allow 530mm of droop travel from top of top mount to centre of lower strut mounting hole, and gives 170mm of suspension travel from full droop.
This adjustable wishbone kit is a comprehensive tubular wishbone kit with sub-frame stiffening.
The kit allows a large adjustment of both track width and caster. The caster and track width adjustment is done using an 'in situ' adjuster mechanism which allows adjustment without removing any parts. This aids a quick and accurate set up.
The wishbones are made from CDS steel tube with CNC machined threaded inserts for the inner rod end adjustment and a CNC spherical bearing housing for the outer link. Using a spherical bearing for the outer joint is far superior to using a rod end because a rod end is always under a bending load. The design of these wishbones with an outer spherical joint eliminates any bending load in the outer pickup point of the wishbone.
The outer joint spacers raise the roll centre to keep near the original suspension geometry when the car has significantly lower ride height.
The sub-frames on the Clio 2 are very weak, so this kit includes a large laser cut and TIG welded stiffening kit that welds onto the original sub-frame. This stiffening also houses the inner pick up points for the wishbones. The wishbone pick up points are placed as wide as possible to reduce the loading on the wishbones and to get the rear joint in the very strong, rear corner of the sub-frame.

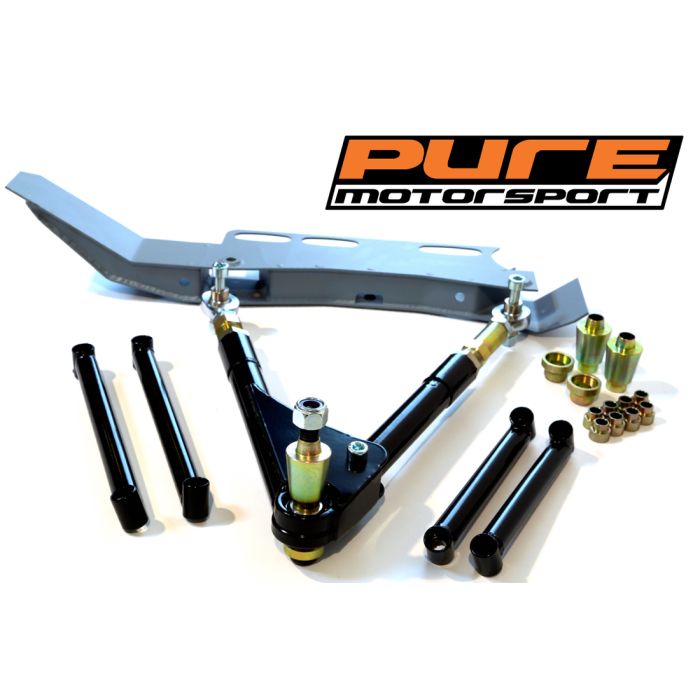

The kit includes:
Two wishbones
Inner rod ends
Outer spherical bearings
'in situ' caster adjusters
Spacers for inner and outer joints
Two sub-frame stiffeners
Four sub-frame to body braces
All mounting bolts required for fitment
The only extra parts you will need to fit this kit is:
a pair of 4 stud Laguna hubs and uprights.
a bump steer kit if you don't already have one of ours - click here.
The Laguna hubs fit on a 65mm strut hole spacing and we can supply a camber adjustable strut mounting kit to weld onto your existing dampers should you require them - click here. The Renaultsport Bilstein dampers are a direct fit with this wishbone kit.
Fitting instructions here:
Fitting Guide
