Brembo 4 Pot Caliper 280mm Disc Conversion Kit

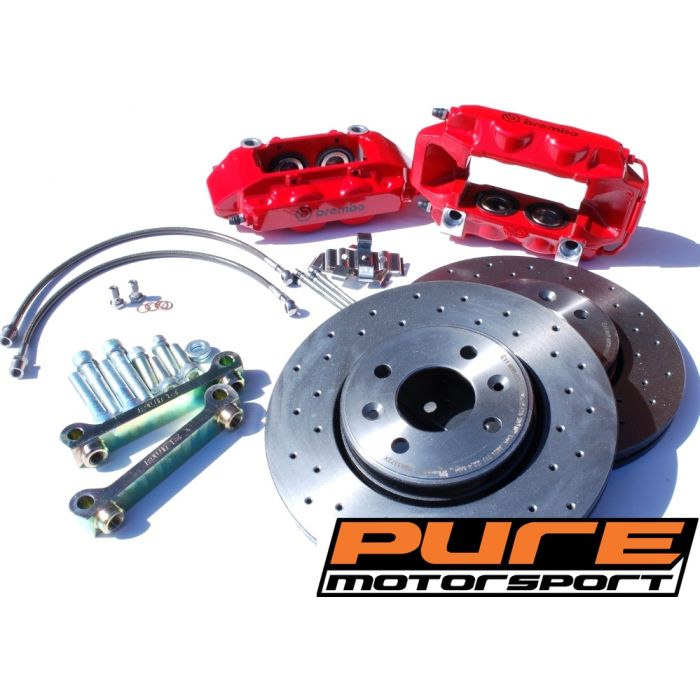

This kit includes two custom Goodridge brake hoses, two brake calliper mounting brackets and all associated bolts required to fit - with optional extra:

Pair of brand new Clio 197 Brembo 4 piston callipers with pad fitting kit, These callipers are Genuine brand new Renault stock - not reconditioned! Modified by us ready to fit to the 280mm brake brackets.

285x28mm two piece discs and alloy bells.

The kit doesn't include brake pads - these can be found here.

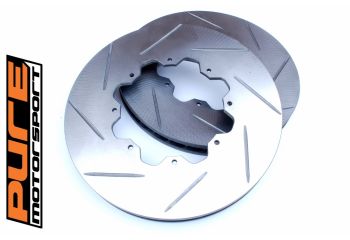

The Pure Motorsport discs feature a 285mm diameter x 28mm thick, curved vane rotor mounted onto our billet aluminium bell.  The rotors are a high quality, high carbon casting made in the UK.  We bolt these to our own design of aluminium alloy bell which is CNC machined.  We use top quality AP racing brake bell bolts with high temperature self locking K-nuts and stainless steel washers.

The discs are grooved to give a stable brake feel with maximum resilience to thermal cracking.  The grooves also keep the pad faces clean and reduce pad glazing.

These will offer a great upgrade to the standard 280mm disc with much greater heat loss capacity due to the additional cooling effects of the wider and curved vanes.

They also offer a 2.7kg weight reduction over the standard discs.  Standard discs are 14.8kg per pair, these discs complete are 12.1kg per pair


The Brembo four piston callipers are a lightweight aluminium design with four pistons to give even pressure over the pad area. The pad is far larger than the standard 172/182 brake pads giving more friction area.

The brake calliper brackets are CNC machined from steel to be extremely strong and resistant to flex. They are then zinc plated for corrosion resistance.

The mounting bolts are all high quality 12.9 grade capheads for ultimate strength and durability.

We have designed and tested a wheel that fits over these brakes without the need for spacers in a 7x15" ET35 offset - the Braid Fullrace wheels which can be found in:

Anthracite here

White here

This kit will fit behind other 15" wheels but you will need to use spacers depending on the wheel offset and design. We have tried them with the Speedline 2118 ET43, with an 18mm spacer.  With some wheels with good calliper clearance they may fit with no spacers.

Drawing to modify callipers here:
Drawing

Fitting instructions here:
Fitting Guide
