Brembo 280mm Brake Bracket Kit

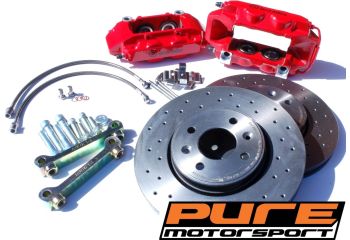

This is a kit of brake calliper brackets and mounting bolts to fit Clio 197/200 callipers with the standard size 280mm discs on your Clio 2 RS or you can use our 285mmx28mm two piece disc for ultimate performance- you can source some used callipers yourself from a Clio 197 or Megane 2 RS.  The brake callipers do need modifying to fit this kit - please see drawing below.

This kit includes:

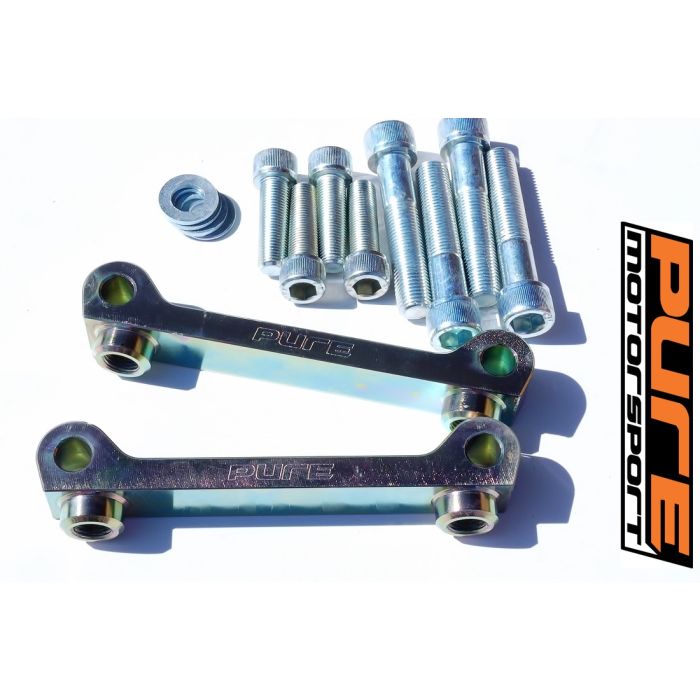

Two brake calliper fixing brackets and all associated bolts required to fit the brackets to the hub and calliper to the brackets (all 12.9 grade capheads).

The brackets are CNC machined from steel to be extremely strong and resistant to flex. They are then zinc plated for corrosion resistance.

We have just designed and tested a wheel that fits over these brakes without the need for spacers in a 7x15" ET35 offset - the Braid Fullrace wheels which can be found in:

Anthracite here

White here

This kit will fit behind other 15" wheels but you will need to use spacers depending on the wheel offset and design. We have tried them with the Speedline 2118 ET43, with an 18mm spacer.  They just about fit (but are too close) with a 10mm spacer on the 2118 wheels so with some wheels with good calliper clearance they may fit with no spacers.

Drawing to modify callipers here:
Drawing

Fitting instructions are the same as the 300mm kit here:
Fitting Guide
